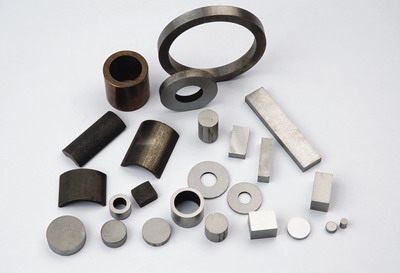

SmCo Magnets
Grade	Br	HcB	HcJ	(BH)max	Tc.	Tw.	aBr	ALLOY
	[mT]	[KA/m]	[KA/m]	[KJ/m3]	[C]	[C]	[%/C]

[Gs]	[Oe]	[Oe]	[MGOe]	Series
S18	840	605	1432	143	750	250	-0.04	SmCo5
	8400	7600	18000	18
S20	890	637	1432	159	750	250	-0.04
	8900	8000	18000	20
S22	930	637	1432	175	750	280	-0.04	Sm2Co17
	9300	8000	18000	22
S24	980	676	1432	191	800	280	-0.04
	9800	8500	18000	24
S24H	980	676	1989	191	800	330	-0.04
	9800	8500	25000	24
S26L	1030	398	438	207	800	180	-0.04
	10300	5000	5500	26
S26	1030	716	1194	207	800	250	-0.04
	10300	9000	15000	26
S26M	1030	716	1592	207	800	300	-0.04
	10300	9000	20000	26
S26H	1030	716	1989	207	800	330	-0.04
	10300	9000	25000	26
S28L	1070	398	438	223	800	180	-0.04
	10700	5000	5500	28
S28	1070	756	1194	223	800	250	-0.04
	10700	9500	15000	28
S28M	1070	756	1592	223	800	300	-0.04
	10700	9500	20000	28
S30L	1100	398	438	239	800	180	-0.04
	11000	5000	5500	30
S30	1100	772	1194	239	800	250	-0.04
	11000	9700	15000	30
S30M	1100	772	1592	239	800	300	-0.04
	11000	9700	20000	30
